G-scan equine

VET Systems

  • Overview
  • Features Insight
  • Siting
  • Economics
  • Download
Overview

G-scan equine: why so unique

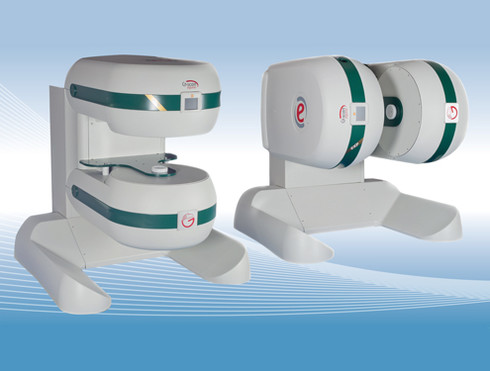

While many MRI systems are capable to scan the limbs of horses from the carpus and tarsus distally, because sufficiently easy to drag the anatomy to the isocenter of the magnet, when it comes to stifle joint it gets impossible for every MRI in the market for the sole exclusion of the G-scan equine. In fact thank to its revolutionary system design and rotating mechanism, it enables a unique patient positioning, which is functional to an optimal investigation of the stifle joint, moreover the peculiarities of the system are now looming new horizons on the future possibility to scan the horse under sedation.

The voice of Customer

G-scan Equine has been developed in close collaboration with expert equine specialists, resulting in sequences and exam protocols that are tested at research sites and the possibility of creating customized protocols, according to specific clinical needs.

Furthermore, the software features correct Vet terminology and image orientation together appropriate patient set-up scheme, allowing for easy exam management.

Features Insight

G-scan equine gantry screen

Easy positioning

Correct positioning of the district of interest in the magnet is key to obtain a good image quality. G-scan equine has some particular features that substantially facilitates the work of the MRI tech making for a faster scan and better image quality.

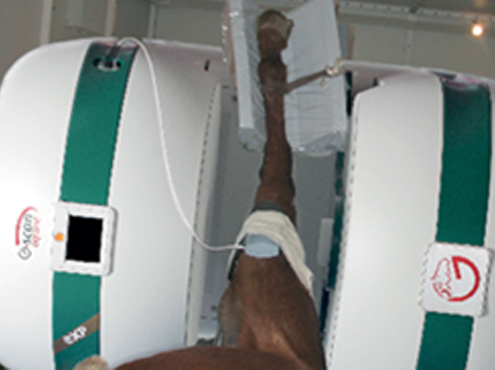

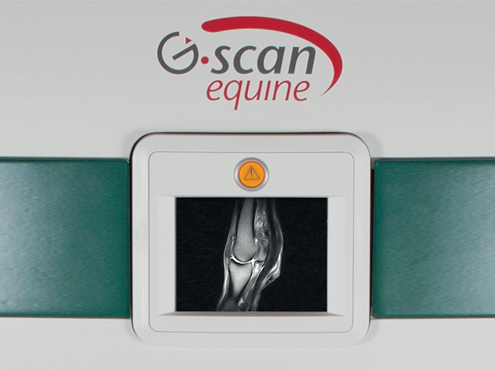

Real-Time Gantry Monitor

The small monitor situated on magnet displays in real time the MRI image for an immediate set up.

G-scan equine dedicated coils

Dedicated easy coils

Dedicated coils that can be opened to facilitate positioning of the horse’s limb.

G-scan equine

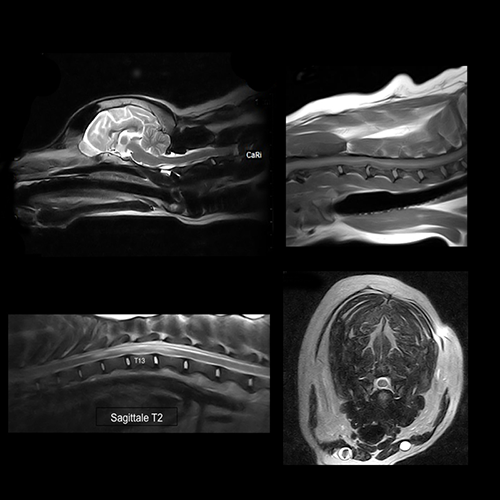

Versatility, suitable also for small animal applications.

The G-scan Equine can also be equipped with the appropriate software and coils dedicated to small animal applications to enhance the patient database.

Technology and features are system/configuration dependent. Specifications subject to change without notice. Information might refer to products or modalities not yet approved in all countries. Product images are for illustrative purposes only. For further details, please contact your Esaote sales representative.

Siting

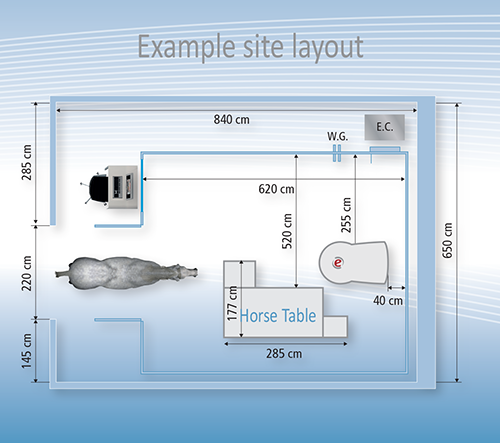

G-scan Equine siting

G-scan Equine: General installation data

  • Minimum space requirements: 55 m² (592 sq.ft.)
  • Height minimum: 2.4 mt
  • Environmental requirements: 21-24 °C ± 3 °C/Std.
  • Floor loading: 8000 Kg
  • MRI compatible horse table by 3rd party supplier

Technology and features are system/configuration dependent. Specifications subject to change without notice. Information might refer to products or modalities not yet approved in all countries. Product images are for illustrative purposes only. For further details, please contact your Esaote sales representative.

Economics

G-scan Equine Economics

Vet-MR Grande is an intelligent and affordable investment. It has a maintenance-free permanent magnet, no special cooling systems are required and power consumption is very low (max 3 Kw) meaning that it can be run from a standard power outlet. The total operating costs of Vet-MR Grande are very low thanks to is easy siting, minimal running costs and the limited initial investment.

Low Power Consumption: Max 3 Kw

Technology and features are system/configuration dependent. Specifications subject to change without notice. Information might refer to products or modalities not yet approved in all countries. Product images are for illustrative purposes only. For further details, please contact your Esaote sales representative.

Download

G-scan equine: The Top Class Equine MRI

Technology and features are system/configuration dependent. Specifications subject to change without notice. Information might refer to products or modalities not yet approved in all countries. Product images are for illustrative purposes only. For further details, please contact your Esaote sales representative.

Certifications


Technology and features are system/configuration dependent. Specifications subject to change without notice. Information might refer to products or modalities not yet approved in all countries. Product images are for illustrative purposes only. For further details, please contact your Esaote sales representative.

IMAGESCliniques

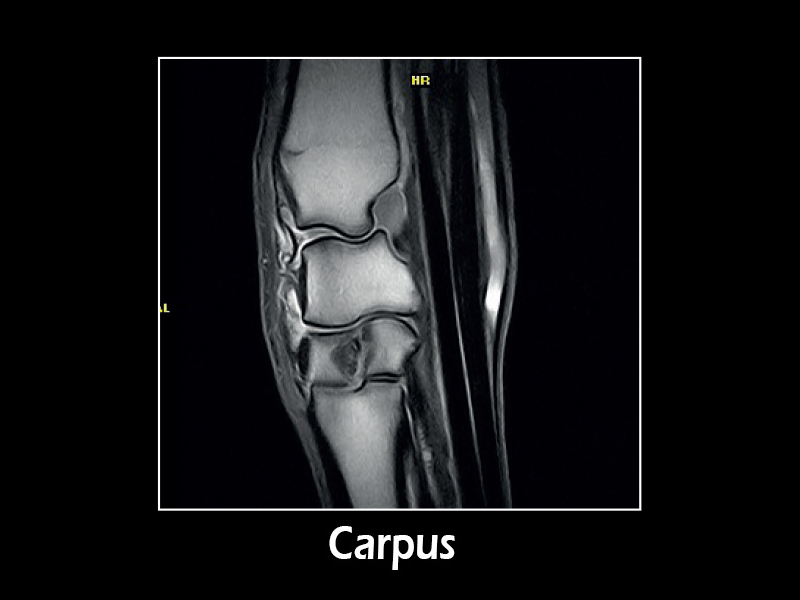

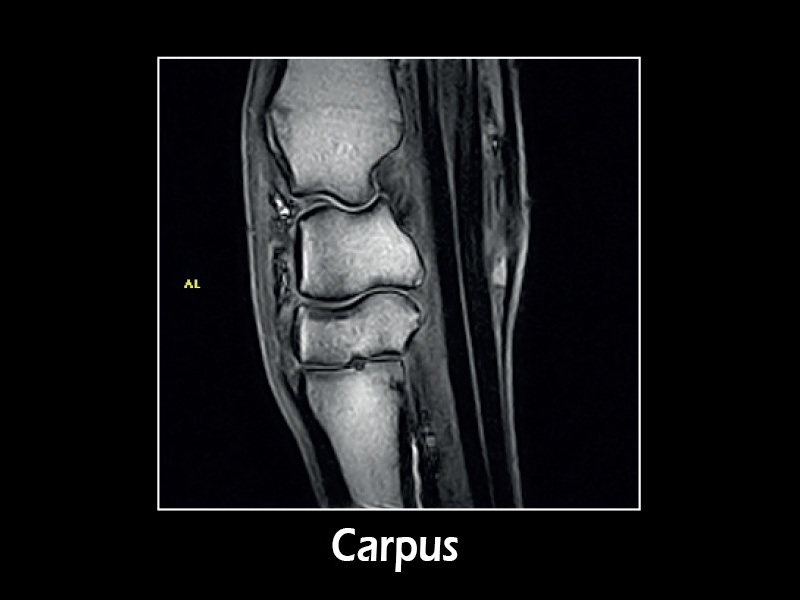

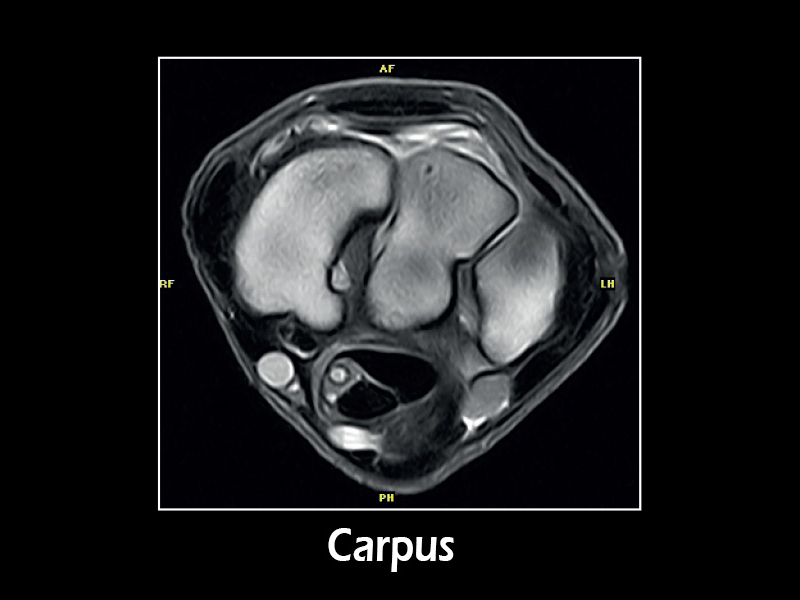

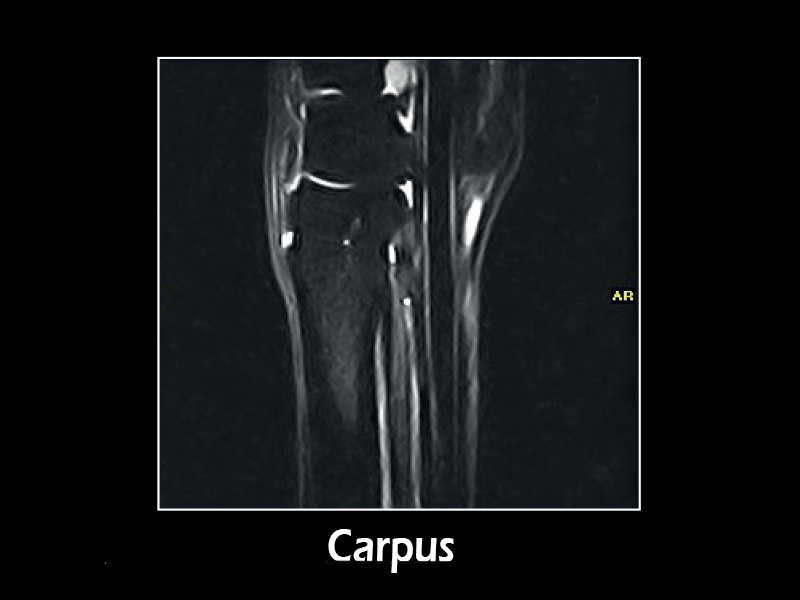

Clinical Image - G-scan equine: Carpus
Clinical Image - G-scan equine: Carpus
Clinical Image - G-scan equine: Carpus
Clinical Image - G-scan equine: Carpus

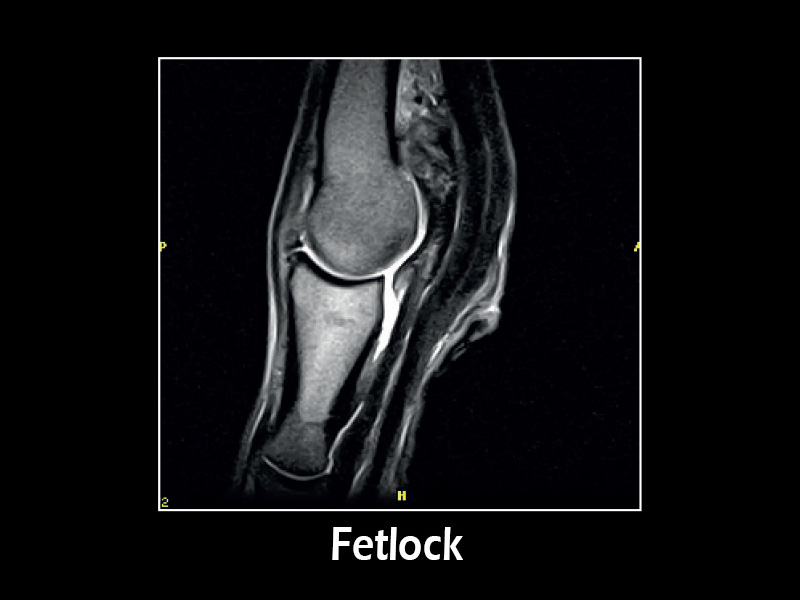

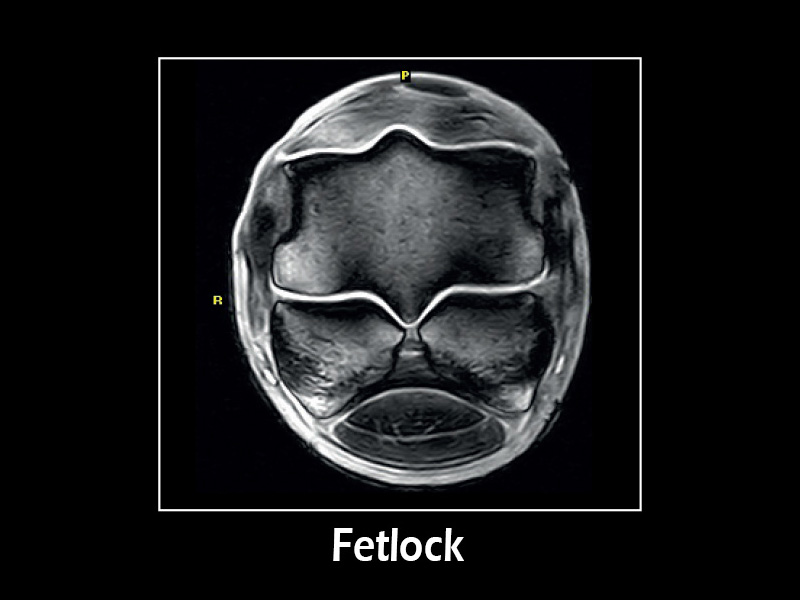

Clinical Image - G-scan equine: Fetlock
Clinical Image - G-scan equine: Fetlock

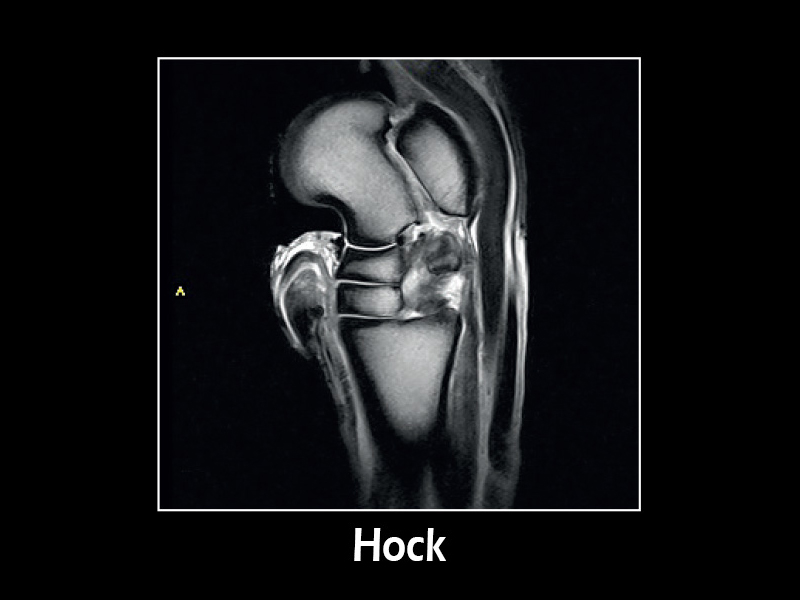

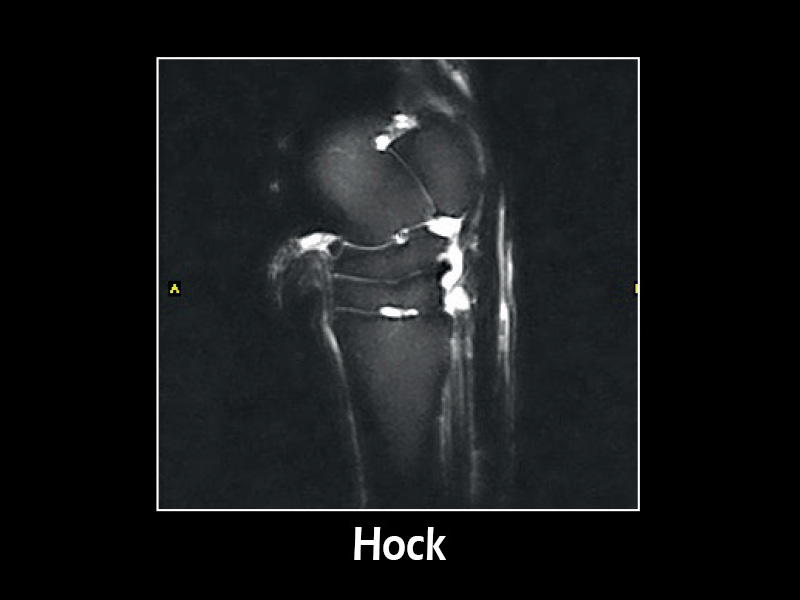

Clinical Image - G-scan equine: Hock
Clinical Image - G-scan equine: Hock

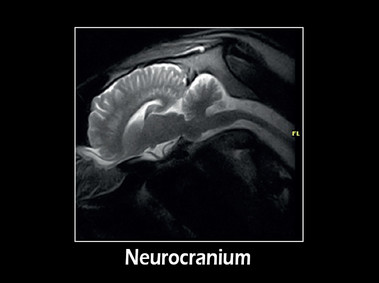

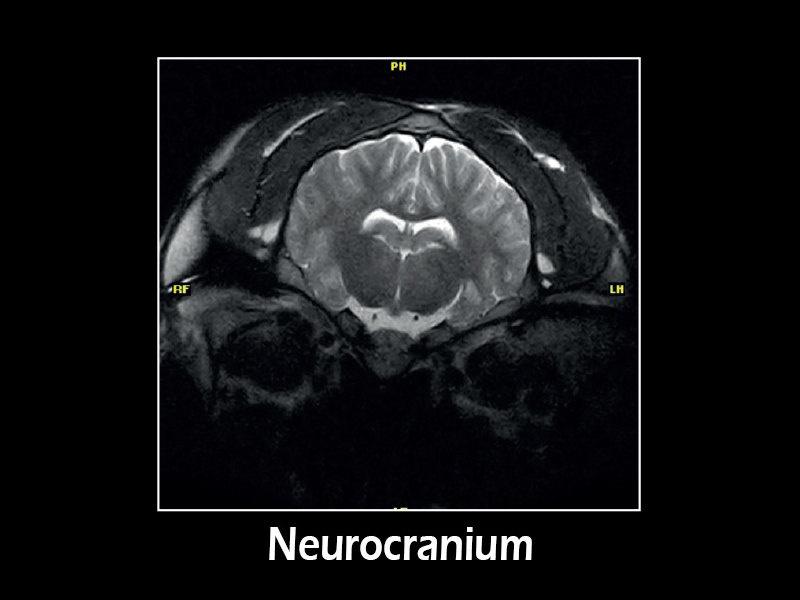

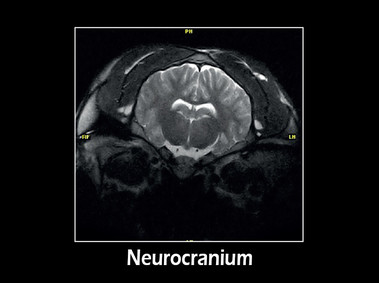

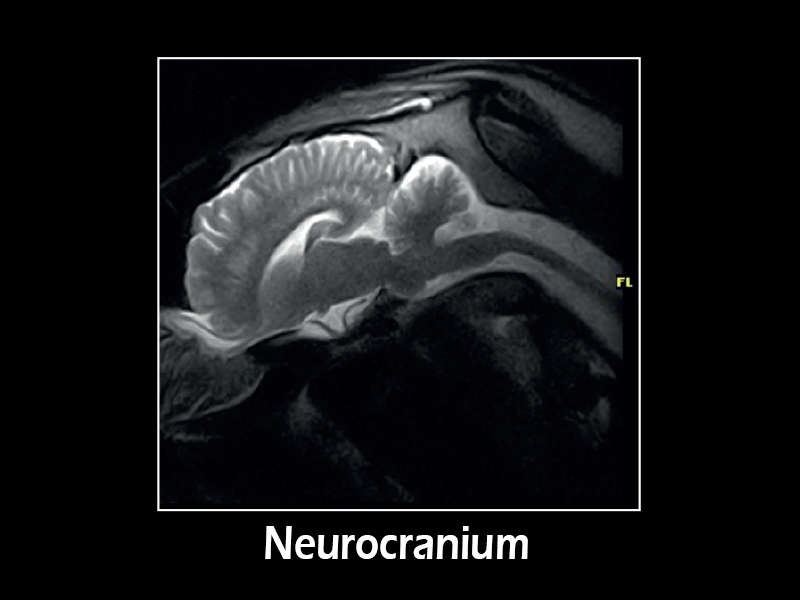

Clinical Image - G-scan equine: Neuro
Clinical Image - G-scan equine: Neuro

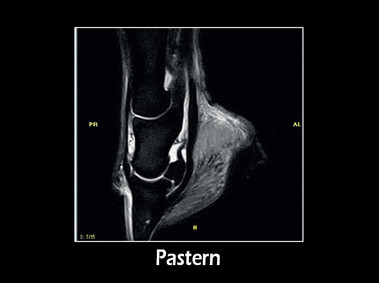

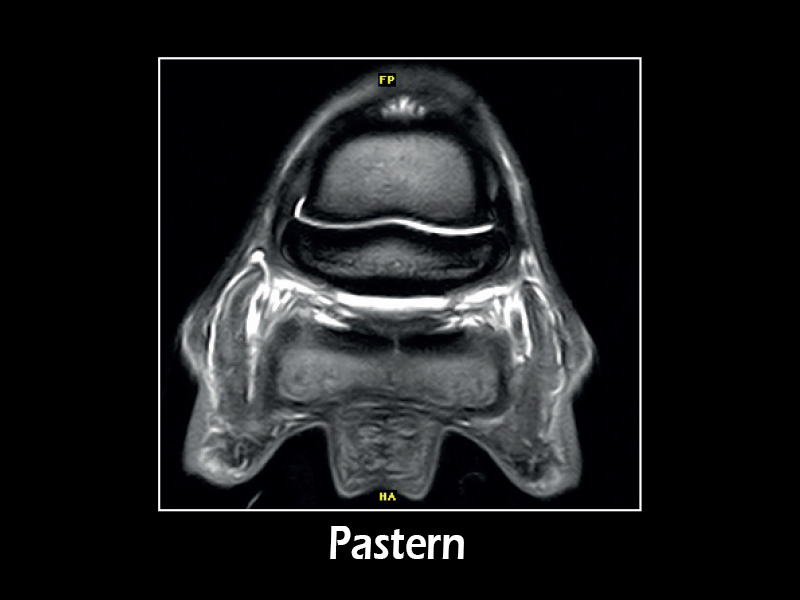

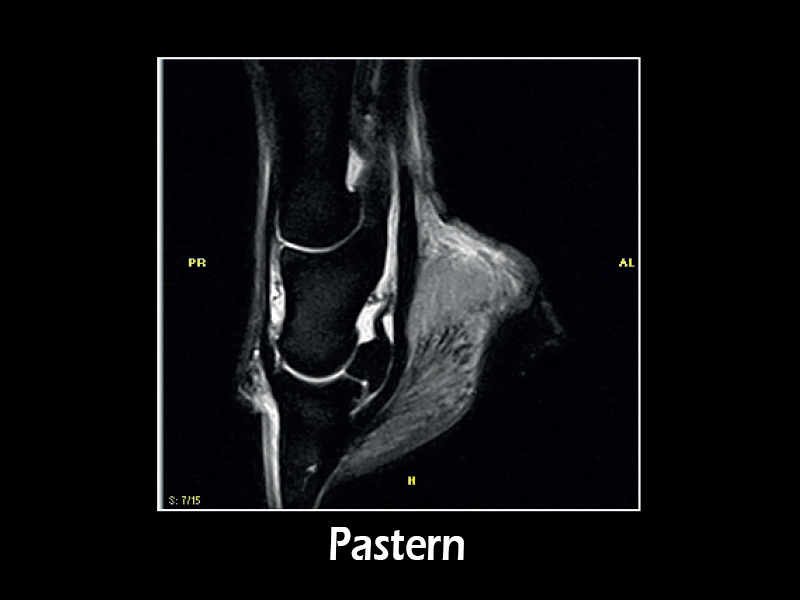

Clinical Image - G-scan equine: Pastern
Clinical Image - G-scan equine: Pastern

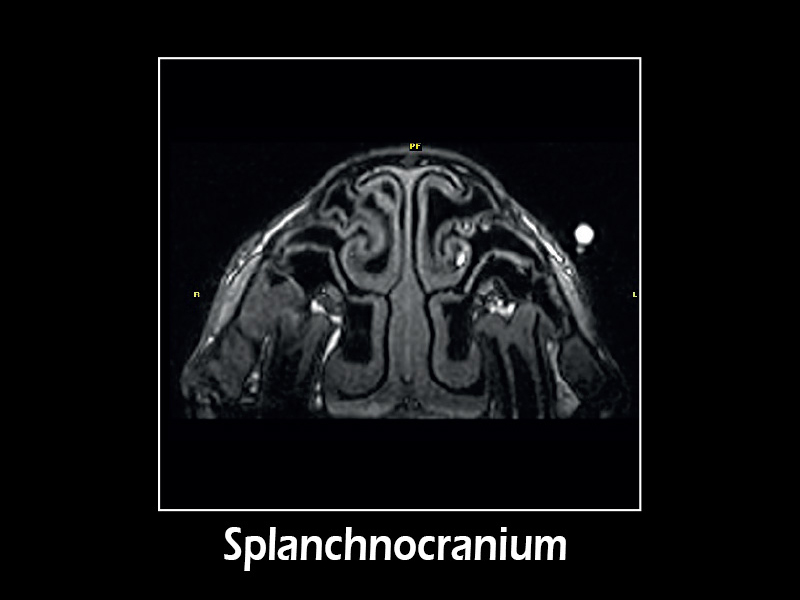

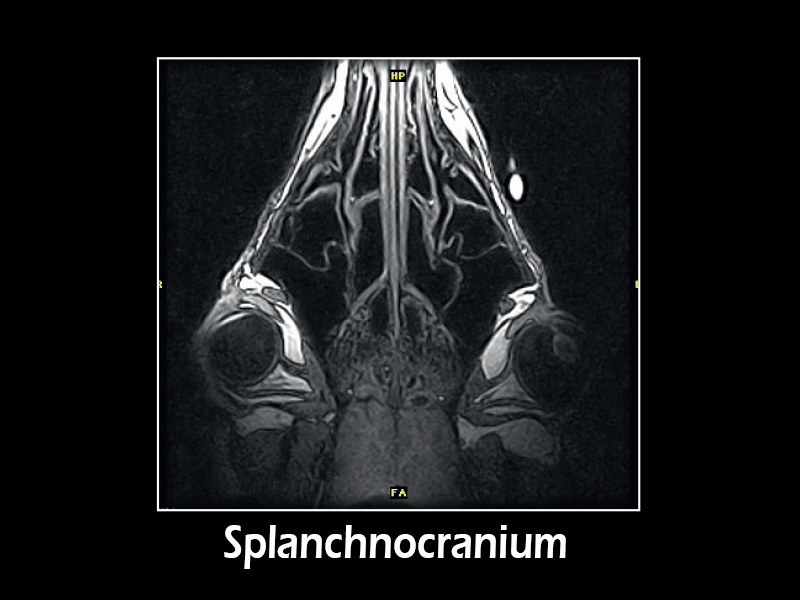

Clinical Image - G-scan equine: Splacno
Clinical Image - G-scan equine: Splacno

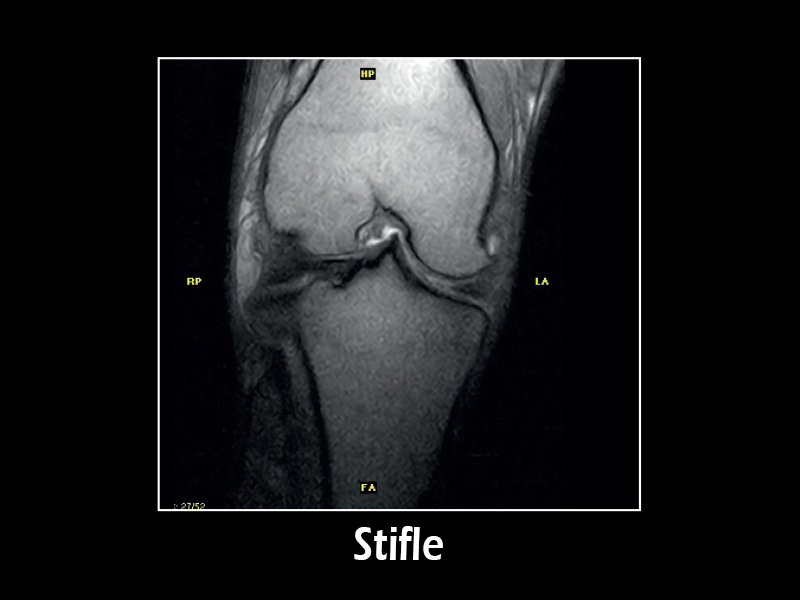

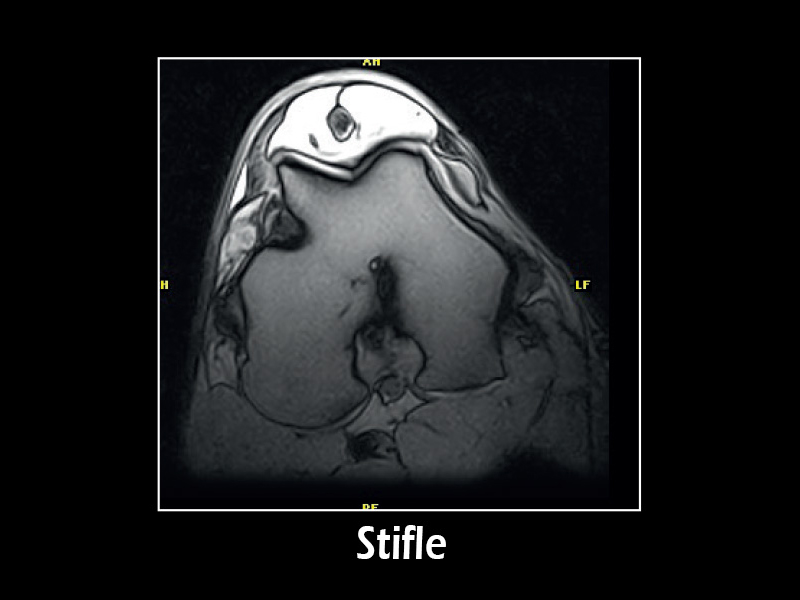

Clinical Image - G-scan equine: Stifle
Clinical Image - G-scan equine: Stifle

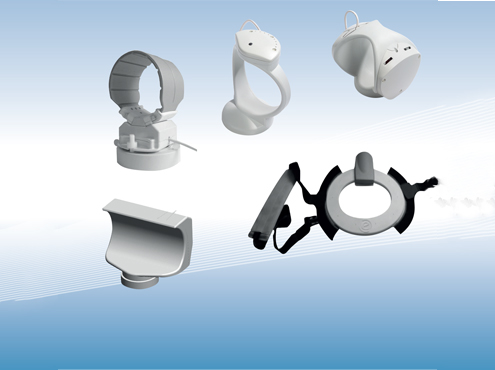

ANTENNES

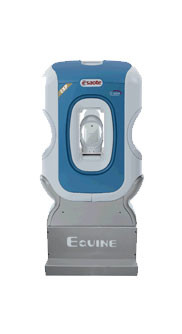

Coil Horse 1

Shoulder

Coil Horse 3

Coil Horse 4

Coil Horse 5

Coil Horse 1
Shoulder
Coil Horse 3
Coil Horse 4
Coil Horse 5
